circular Saw Blades for steel tube

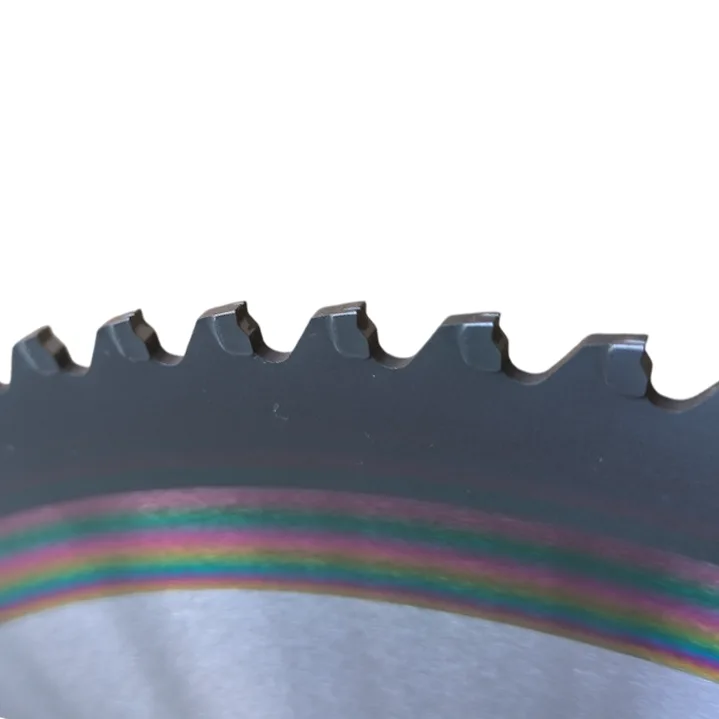

Tungsten Carbided Circular Saw Blades for Steel Tube Cutting-CSTA

cutting speed: 180m/min-320m/min.

tooth load: 0.04-0.14mm/tooth.

PVD coated tungsten carbide tipped saw blades designed for cutting all steel tubes.

Grade: Industrial
Machines: High speed static sawing machines
Materials: All steel tubes with a tensile strength up to 1600Mpa
Applications: For sawing all steel tubes with a tensile strength up to 1600Mpa

Get a quote

Optional materials and processes(OEM/ODM Available)

Body: 80CrV2/SKS51
Tips: Tungsten carbide

Coating: PVD
Tension ring: Visible or concealed configuration

Typical Specification

Code	D mm	B mm	b mm	d mm	Z	Tooth Type	Pinholes
CSTA0250	250	2.0	1.7	32	80	TC	custom
CSTA0251	250	2.0	1.7	32	100	TC	custom
CSTA0252	250	2.0	1.7	32	120	TC	custom
CSTA0253	250	2.0	1.8	32	100	TC	custom
CSTA0280	285	2.0	1.7	32	100	TC	custom
CSTA0281	285	2.0	1.7	32	120	TC	custom
CSTA0282	285	2.0	1.7	32	140	TC	custom
CSTA0283	285	2.0	1.8	40	100	TC	custom
CSTA0284	285	2.0	1.8	40	120	TC	custom
CSTA0285	285	2.0	1.8	40	140	TC	custom
CSTA0310	315	2.5	2.3	40	100	TC	custom
CSTA0311	315	2.5	2.3	40	120	TC	custom
CSTA0350	350	2.6	2.3	50	120	TC	custom
CSTA0351	350	2.6	2.3	50	140	TC	custom
CSTA0352	350	2.6	2.3	50	160	TC	custom
CSTA0360	360	2.6	2.3	50	120	TC	custom
CSTA0361	360	2.6	2.3	50	140	TC	custom
CSTA0362	360	2.6	2.3	50	160	TC	custom
CSTA0400	400	2.6	2.3	50	120	TC	custom
CSTA0401	400	2.6	2.3	50	140	TC	custom
CSTA0402	400	2.6	2.3	50	160	TC	custom
CSTA0420	425	2.7	2.3	50	120	TC	custom
CSTA0421	425	2.7	2.3	50	140	TC	custom
CSTA0422	425	2.7	2.3	50	160	TC	custom
CSTA0450	450	2.7	2.3	50	120	TC	custom
CSTA0451	450	2.7	2.3	50	140	TC	custom
CSTA0452	450	2.7	2.3	50	160	TC	custom
CSTA0453	450	2.7	2.3	50	180	TC	custom
CSTA0460	460	2.7	2.3	50	120	TC	custom
CSTA0461	460	2.7	2.3	50	140	TC	custom
CSTA0462	460	2.7	2.3	50	160	TC	custom
CSTA0463	460	2.7	2.3	50	180	TC	custom
CSTA0560	560	3.0	2.5	50	140	TC	custom
CSTA0561	560	3.0	2.5	50	160	TC	custom

Specifications can be tailored to meet customer requirements.
