TCT Circular Saw Blades For Metal-FM3A

TCT Circular Saw Blades For Metal-FM3A

Suitable for cutting low and medium carbon steel tubes, profiles and small bars used in construction.

Grade: Professional
Machines: Low RPM machines such as Dry cut mitre saws, portable saws
Materials: mild steel such as Angle-Iron,C-Channel,Conduit,Metal Roofing,Rebar,Steel Studs,Steel Plate/Sheets,Various Steel Pipe
Applications: low and medium carbon steel dry cutting

Get a quote

Optional materials and processes(OEM/ODM Available)

Body: 75Cr1/80CrV2/SKS51
Tips: Tungsten carbide

Coating: Polished finish or chrome plating
Tension ring: Visible or concealed configuration

Typical Specification

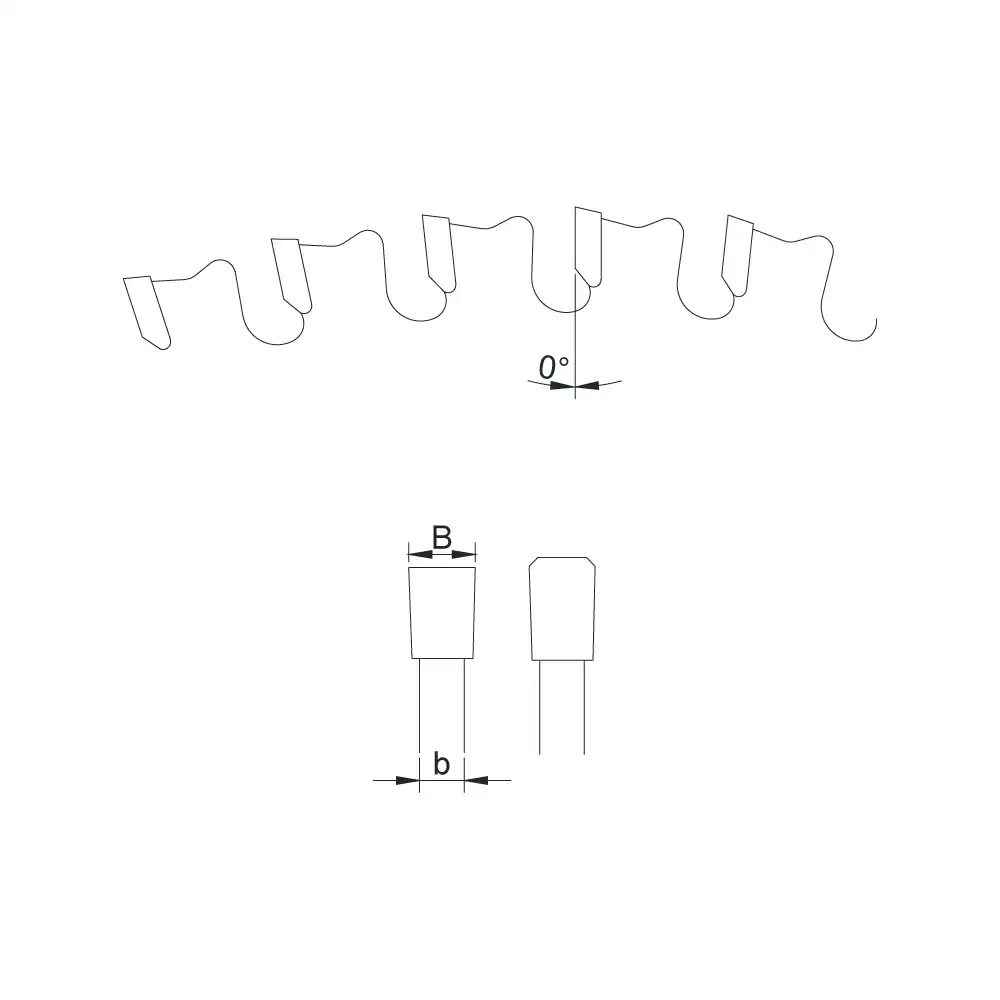

Code	D Diameter(mm)	B Width of Cut(mm)	b(mm)	d Bore(mm)	Z Number of teeth	Tooth type	Pinholes
FM3A0161	160	2.0	1.6	20	30	TCG	-
FM3A0181	185	2.0	1.6	15.88	36	TCG	-
FM3A0182	185	2.0	1.6	15.88	48	TCG	-
FM3A0191	190	2.0	1.6	30	36	TCG	-
FM3A0211	210	2.0	1.6	30	48	TCG	-
FM3A0212	216	2.0	1.6	30	48	TCG	-
FM3A0231	230	2.0	1.6	30	48	TCG	-
FM3A0232	230	2.4	2.0	25.4	44	TCG	-
FM3A0251	250	2.0	1.6	25.4	48	TCG	-
FM3A0252	250	2.0	1.6	25.4	60	TCG	-
FM3A0301	305	2.2	1.8	25.4	60	TCG	-
FM3A0302	305	2.2	1.8	25.4	72	TCG	-
FM3A0351	355	2.4	2.0	25.4	72	TCG	-
FM3A0352	355	2.4	2.0	25.4	90	TCG	-
FM3A0353	355	2.6	2.2	25.4	72	TCG	-
FM3A0354	355	2.6	2.2	25.4	90	TCG	-

Specifications can be tailored to meet customer requirements.
