TCT Circular Saw Blades For Acrylic and Plastic Materials-AP5A

TCT Circular Saw Blades For Acrylic and Plastic Materials-AP5A

Perfect for cutting acrylic and plastic materials, ensuring exceptionally clean, smooth finishing.

Grade: Industrial
Machines: Squaring saws, table saws and portable circular saws
Materials: Acrylic(Plexiglass) and plastics
Applications: Acrylic(Plexiglass) and plastic cutting

Get a quote

Optional materials and processes(OEM/ODM Available)

Body: 75Cr1/80CrV2/SKS51
Tips: Tungsten carbide
Expansion Slots: Available with or without copper plugs

Coating: Polished finish or chrome plating
Tension ring: Visible or concealed configuration
Anti-vibration Design: Slots or slots filled with thermoplastic polyurethane (TPU)

Typical Specification

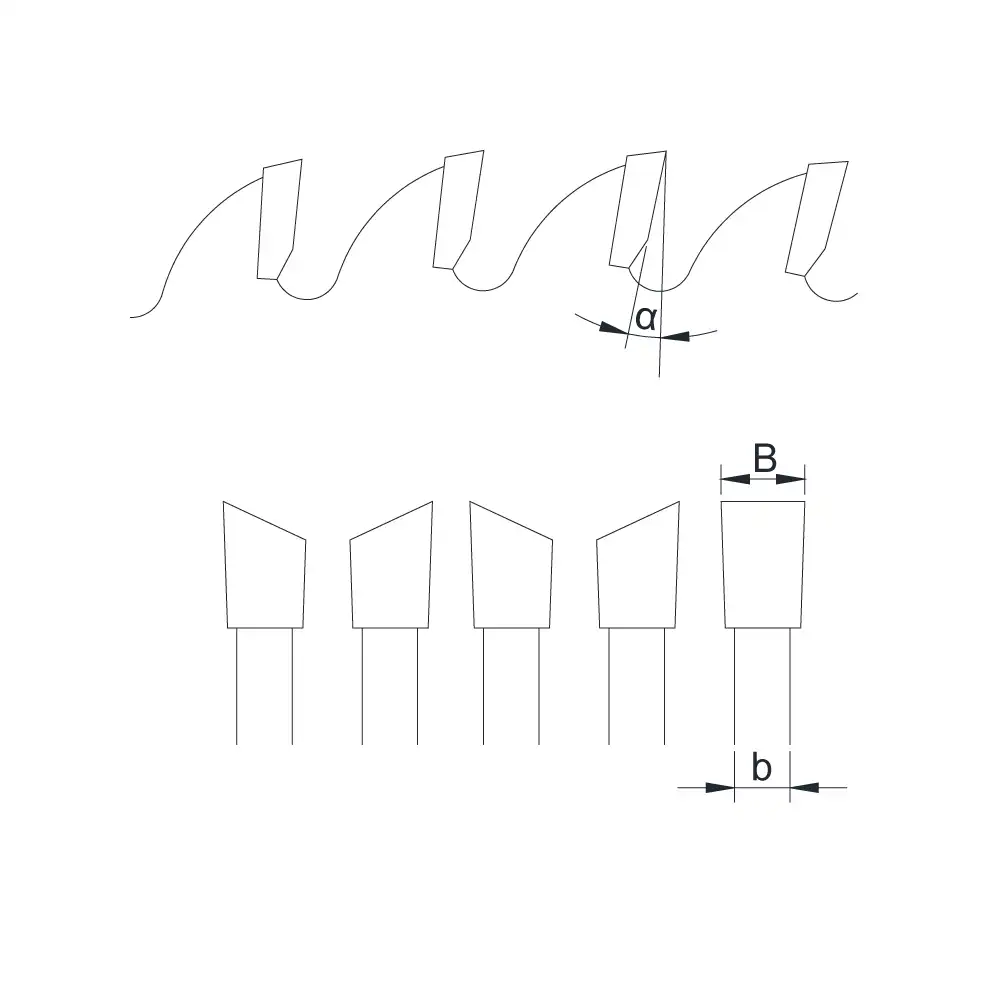

Code	D Diameter(mm)	B Width of Cut(mm)	b(mm)	d Bore(mm)	Z Number of teeth	Tooth type	Pinholes	α Hook angle (°)
AP5A0231	230	2.0	1.5	25.4	80	ATB5	-	15
AP5A0232	230	2.0	1.5	25.4	100	ATB5	-	15
AP5A0251	255	2.0	1.5	25.4	80	ATB5	-	15
AP5A0252	255	2.0	1.5	25.4	100	ATB5	-	15
AP5A0253	255	2.0	1.5	25.4	120	ATB5	-	15
AP5A0301	305	2.0	1.5	25.4	100	ATB5	-	15
AP5A0302	305	2.0	1.5	25.4	120	ATB5	-	15
AP5A0351	355	2.6	2.0	25.4	100	ATB5	-	15
AP5A0352	355	2.6	2.0	25.4	120	ATB5	-	15
AP5A0353	355	3.0	2.2	25.4	100	ATB5	-	15
AP5A0354	355	3.0	2.2	25.4	120	ATB5	-	15

Specifications can be tailored to meet customer requirements.
